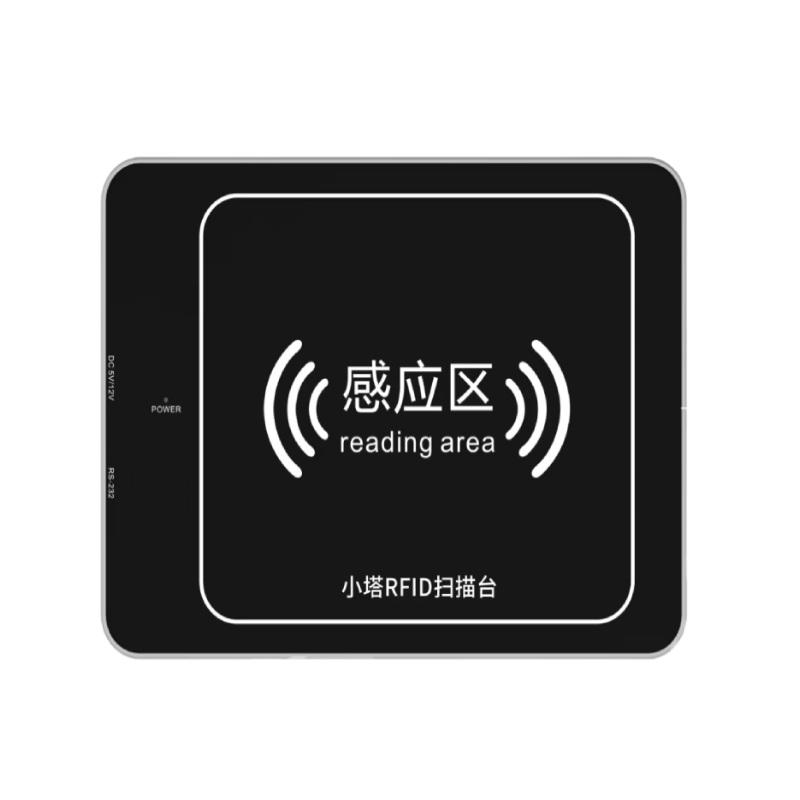

XTS2002 is a near-field UHF RFID reader for fast retail checkout, receiving, shipping verification and inventory management.
Use anti-collision processing and dense-tag reading to identify multiple tagged products in one operation.
A near-field circularly polarized antenna limits normal reading operations to approximately 30 cm.
Support sales-data updates and compatible RFID loss-prevention status processing through connected software.
Tag filtering, RSSI data and C#/Java development materials support application integration.
RFID checkout requires more than raw read distance. The reader must identify the products involved in the current transaction while reducing unintended reads from other tagged merchandise nearby.
XTS2002 uses a near-field antenna and adjustable RF output to create a defined work-surface reading area. The specified read distance is 0–30 cm, while writing operations are controlled within approximately 10 cm.
When integrated with compatible POS and retail software, the XTS2002 can turn a group of RFID-tagged garments into a faster, more controlled checkout workflow.

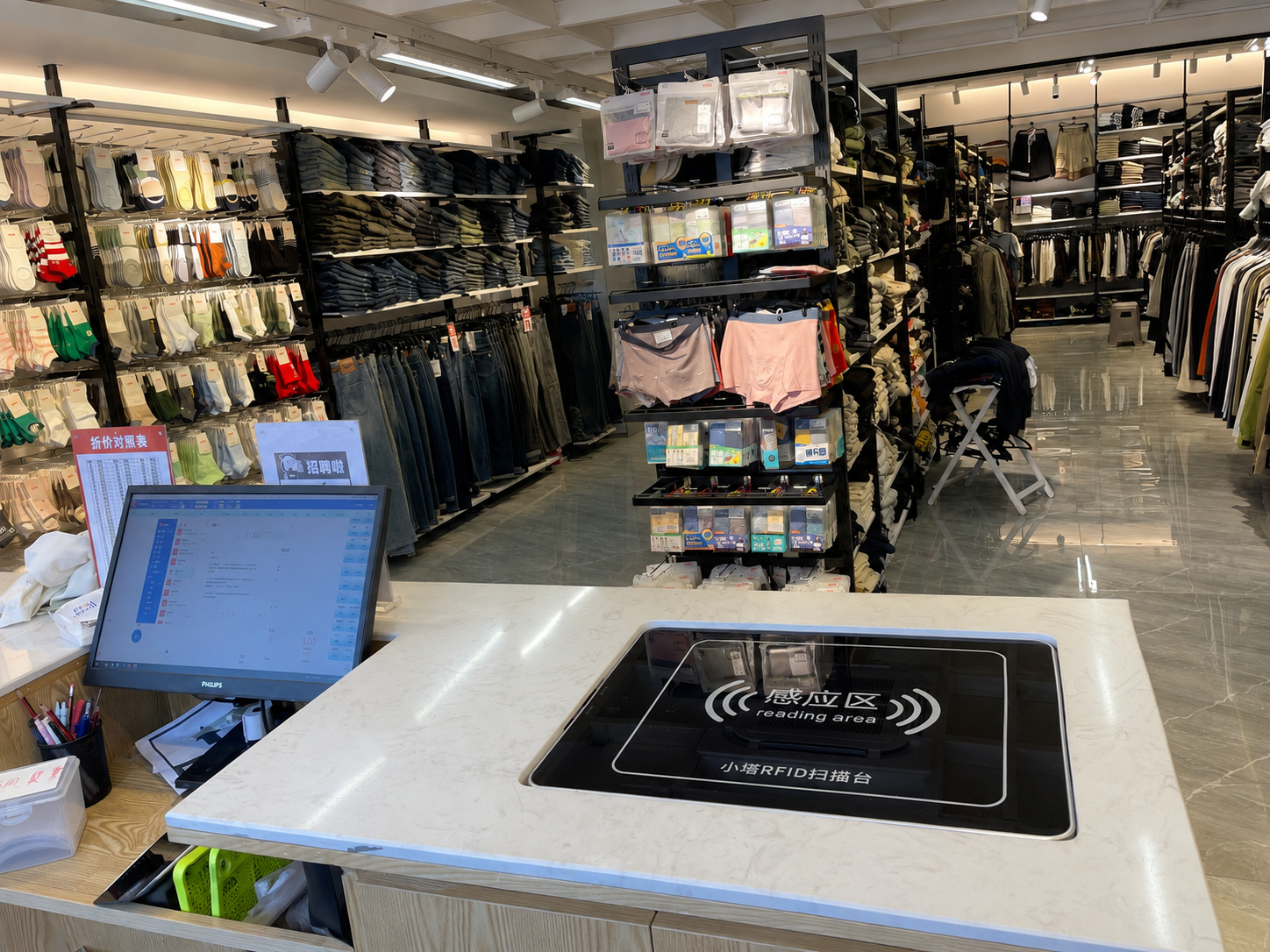

Place the tagged garments inside the defined reading area.
Read multiple EPC identities without presenting every barcode individually.
Compare captured items with the current order or POS transaction.
Update sales data and compatible RFID loss-prevention status after payment.
The XTS2002 can be configured around fixed workstation processes in fashion retail and apparel logistics.
Capture several tagged garments at the counter and send item data to the connected transaction system.
Check incoming tagged products at a fixed workstation against expected receiving data.
Verify outbound products before dispatch and identify quantity or item discrepancies.
Read, filter and write compatible EPC tags within a controlled desktop zone.
XTS2002 supplies RFID tag data to the connected application. Xiaota can support software configuration and project integration around POS, ERP, WMS or other agreed business systems.
C# and Java development materials are available to support application development. Interface selection and data exchange requirements should be confirmed during project assessment.
Xiaota provides end-to-end RFID solutions for apparel and retail, combining RFID tags, readers, software, system integration, workflow testing and on-site deployment. We configure the XTS2002 around real checkout and verification processes rather than treating it as a standalone hardware installation.
| Parameter | Specification |
|---|---|
| RFID PERFORMANCE | |
| Product Model | XTS2002 |
| Product Type | Near-field UHF RFID desktop / checkout reader |
| Frequency Range | 840–960 MHz |
| Air Protocol | ISO 18000-6C/6B, EPC Class 1 Gen 2 |
| Response Speed | ≥40 tags per second |
| Reading Mode | Dense-tag reading; multi-tag identification |
| Reading Radius | 300 mm |
| Reading Distance | 0–30 cm |
| Recommended Writing Range | Within approximately 10 cm |
| Antenna Polarization | Circular polarization |
| Output Power | 0–33 dBm |
| Data Functions | Tag filtering and RSSI signal-strength data |
| INTERFACE AND DEVELOPMENT | |
| Communication Interface | USB or RS232 depending on selected configuration; confirm before ordering |
| Development Support | C# and Java development materials |
| PHYSICAL PARAMETERS | |
| Dimensions | 278 × 370 × 26 mm |
| Weight | 4.5 kg |
| Housing | High-hardness aluminum profile frame, carbon-steel plate and tempered glass |
| OPERATING ENVIRONMENT | |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -40°C to +85°C |
| Operating Humidity | <95% RH at +25°C |
Read and write performance varies with tag type, placement, RF settings, surrounding materials and the deployment environment. Interface configuration should be confirmed before ordering.
The reader uses a near-field antenna, adjustable RF power and a defined work surface to concentrate reading on items placed on or close to the platform. Final settings are optimized around the tag and checkout environment.
Yes. XTS2002 supports dense-tag reading and anti-collision processing, with a specified response speed of at least 40 tags per second. Actual results depend on tag placement, quantity and the RF environment.
The device provides RFID tag data and C#/Java development materials. Xiaota can support integration with agreed POS, ERP, WMS or other business systems as part of the RFID project.
When compatible RFID tags and software rules are used, checkout can be configured to update the item's transaction or loss-prevention status after successful payment.
Communication interfaces are supplied according to the selected hardware configuration. Confirm the required interface, host system and development environment before ordering.
Tell us your product type, transaction volume, existing POS or business system, RFID tag specification and checkout layout. Xiaota can help define the reader configuration, integration requirements and pilot-testing plan.
Contact Us for an RFID Checkout Solution
