Mobile UHF RFID reader with 500+ tags/s, 10m+ range, barcode scanning, BLE 5.0 and a replaceable battery for retail and inventory.
Notice: All products can be configured to comply with the local RFID frequency standards of the destination country or region. Please confirm the required frequency band before placing your quote.
Order(MOQ):
1Currency:
Support EXW,DDU(DAP),CPT,DDPTrade Terms:
Support RUB, CNY, USD, POUND, EUROLead Time:

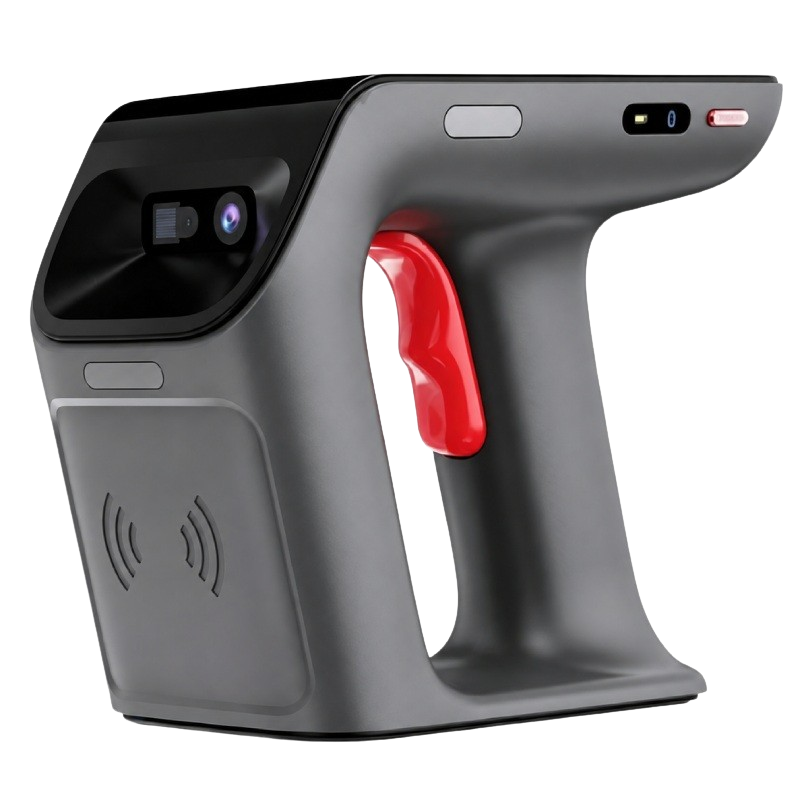

In stock: 1-3 working days / No stock: 5-7 daysThe XT5002 is a smartphone-mounted RFID reader designed for apparel retail, warehouse and inventory operations. A phone or compatible mobile terminal is mounted on the reader, while the XT5002 provides professional UHF RFID and barcode data capture through an ergonomic pistol-grip form factor.
With BLE 5.0 and USB 2.0 HID connectivity, the reader combines mobile application flexibility with high-speed UHF RFID performance, helping teams handle stocktaking, item search, receiving, shipping and verification without relying on a fully integrated Android handheld terminal.
|
01
500+ Tags per SecondRead more than 500 RFID tags per second with the circularly polarized UHF antenna. |
02
10 m+ RFID Read RangeSupport long-range UHF RFID reading beyond 10 meters under suitable tag and operating conditions. |
03
Replaceable 4500 mAh BatteryUses a standard INR21700 battery package that can be replaced by the user for extended daily operation. |
04
RFID + Barcode CaptureCombine UHF RFID with mainstream 1D and 2D barcode scanning in one mobile data-capture device. |
Unlike an all-in-one handheld computer, the XT5002 works as a UHF RFID sled reader: the smartphone or mobile terminal is mounted on the reader and used for the business application, while the sled provides RFID reading, barcode scanning, trigger control and battery power for data-capture operations.
BLE 5.0 supports wireless communication with the mobile device, while USB 2.0 HID provides an additional driver-free interface for compatible workflows.
|
|

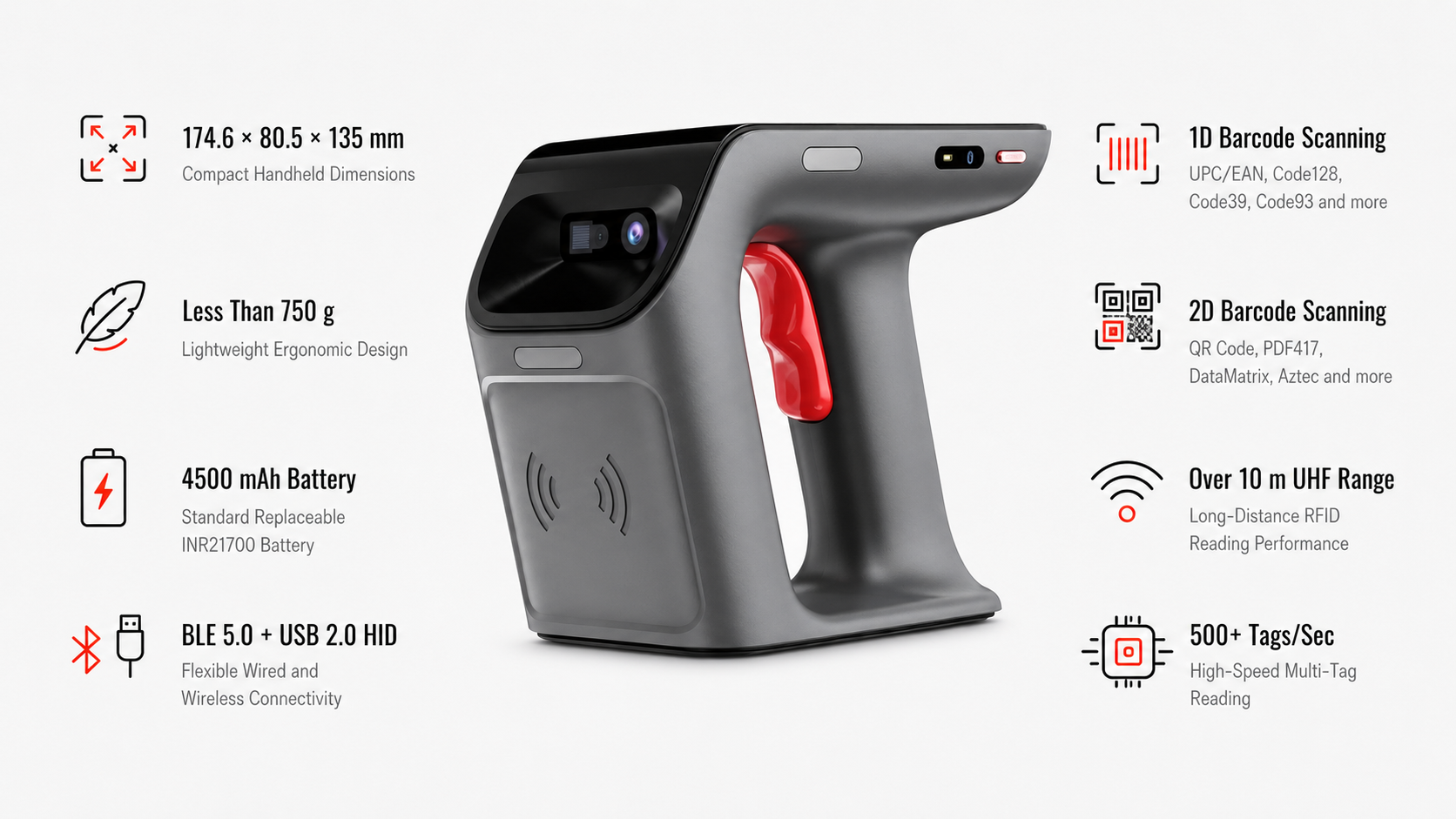

Designed for Mobile RFID Workflows
• Smartphone / mobile terminal mounting area • Dedicated RFID read / stop trigger • Dedicated 2D barcode trigger • Power adjustment buttons • Battery, Bluetooth, RFID and barcode status indicators • USB communication / charging interface |
The XT5002 uses the third-generation X3M1 RFID reader chip with up to 33 dBm transmit power, receiver sensitivity of ≤ -84 dBm and a 3.5 dBi circularly polarized antenna.
Its combination of long-range reading and high tag throughput makes the reader suitable for apparel inventory counting, warehouse verification and other workflows where teams need to identify many RFID-tagged items quickly.
920-925 MHz / 902-928 MHz / 865-868 MHz
Xiaota provides end-to-end RFID solutions for apparel and retail, combining RFID readers, tags, inventory software, system integration and implementation services. The XT5002 can be deployed as part of store, warehouse, e-commerce and distribution workflows rather than as a standalone data-capture device only.
Connect mobile RFID data capture with Xiaota's four core solution areas, from fashion stores to warehouse and order-fulfilment operations.
|
01 / HYPERMARKET & RETAIL
Retail RFID SolutionsUse the XT5002 for store receiving, inventory counting, replenishment, item search and stock verification across retail operations. Explore Retail RFID Solutions → |
02 / E-COMMERCE
RFID Inventory TrackingSupport inventory synchronization, picking, packing verification, shipment checks and returns with mobile RFID data capture. Explore E-Commerce RFID → |
|
03 / WHOLESALE & DISTRIBUTION
RFID Warehouse Inventory ManagementImprove receiving, warehouse stocktaking, order picking, shipment verification and stock transfer across distribution workflows. Explore Warehouse RFID → |
04 / FASHION RETAIL BRANDS
RFID for ApparelIdentify tagged garments by item and support store stocktaking, product search, inventory visibility and omnichannel fulfilment. Explore Apparel RFID Solutions → |
| Parameter | Specification |
|---|---|
| PHYSICAL AND CONNECTIVITY | |
| Product Type | Smartphone-mounted UHF RFID reader / RFID sled reader |
| Dimensions | 174.6 × 80.5 × 135 mm |
| Weight | < 750 g, depending on configuration |
| Battery | 4500 mAh standard INR21700 battery package; user replaceable |
| Communication | BLE 5.0; USB 2.0 HID |
| LED Indicators | Battery, Bluetooth connection, RFID reading and barcode scanning status |
| Side Buttons | Bluetooth, power, power + and power - |
| UHF RFID | |
| RFID Engine | Third-generation X3M1 chip |
| Frequency | 920-925 MHz / 902-928 MHz / 865-868 MHz |
| Antenna | 3.5 dBi circularly polarized antenna |
| Reading Range | > 10 m, depending on tag and operating conditions |
| Multi-tag Reading Speed | > 500 tags/s with circular polarization |
| Transmit Power | 33 dBm |
| Power Adjustment | 1 dB steps |
| Receiver Sensitivity | ≤ -84 dBm |
| BARCODE SCANNING | |
| 1D Barcode | UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5 and supported postal symbologies |
| 2D Barcode | PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR Code, Micro QR, Aztec, MaxiCode, HanXin and others listed in the product specification |
RFID reading distance and throughput depend on tag performance, environment, reader settings and operating conditions.
An RFID sled reader is a mobile RFID data-capture device designed to work with a smartphone or mobile terminal. The phone runs the application while the sled provides UHF RFID reading and, depending on configuration, barcode scanning.
The XT5002 supports multi-tag reading speeds above 500 tags per second with its circularly polarized antenna under suitable operating conditions.
The specified reading distance is more than 10 meters. Actual range depends on the RFID tag, environment, reader power and installation conditions.
Yes. The product specification lists support for mainstream 1D and 2D barcode symbologies in addition to UHF RFID reading.
Talk with Xiaota about the XT5002, RFID tags, inventory software and the workflow requirements for your stores, warehouses or distribution network.
Contact Xiaota
XT50 handheld RFID reader combines UHF RFID and barcode capture with Android 11 and a 9000mAh battery for retail, apparel and warehouse inventory.
View More
XTS2002 is a near-field UHF RFID reader for fast retail checkout, receiving, shipping verification and inventory management.
View More
XTD4231 RFID EAS Gate connects item-level exit detection with visual and audible alarms for fashion retail loss prevention and store security.
View More
The XTS2001 is a compact UHF RFID POS Reader designed specifically for multi-item checkout in fashion retail stores. Instead of scanning each garment barcode individually, cashiers can place multiple RFID-tagged items on the reader and capture them together. The reader connects with an external POS through Type-C and supports USB cursor-style output as well as SDK and API integration. Its slim countertop design allows retailers to add RFID checkout to an existing cashier station without turning the counter into a large self-checkout kiosk.
View More
Speed up multi-item apparel checkout with the XTZ3201 RFID Self Checkout Kiosk, featuring UHF batch reading, POS integration and self-service payment.
View More

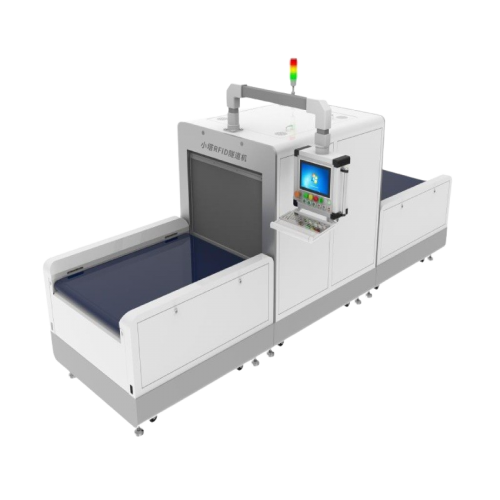

Automate apparel warehouse counting and shipment verification with the XTC6101 RFID Tunnel Reader, reading 400+ tagged items in 3 seconds. Notice: All products can be configured to comply with the local RFID frequency standards of the destination country or region. Please confirm the required frequency band before placing your quote.
