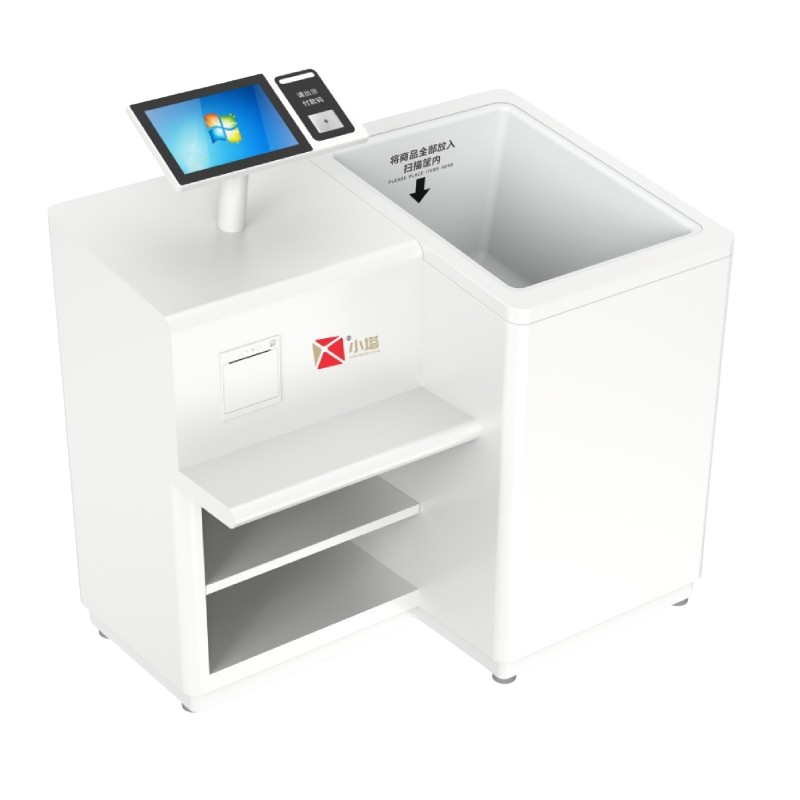

Speed up multi-item apparel checkout with the XTZ3201 RFID Self Checkout Kiosk, featuring UHF batch reading, POS integration and self-service payment.
|
≥15 Items
Per Checkout Batch*
|
10.1-inch
HD Touchscreen
|
840-960 MHz
UHF RFID
|
SDK / API
Integration Support
|
Fashion customers may arrive at the checkout with several sizes, colors and garment types. The XTZ3201 RFID Checkout System identifies the tagged products together, so customers can focus on confirming their purchase instead of finding and scanning every barcode.
|
01
Faster Item CaptureIdentify multiple RFID-tagged garments without scanning each visible barcode individually. |
02
Shorter Checkout QueuesMove customers through the item-identification stage more quickly during busy retail periods. |
03
Less Staff DependencyProvide an unattended or staff-assisted RFID Self Checkout option within the store. |
04
Simpler Customer JourneyGuide customers through item placement, confirmation and receipt output from one integrated terminal. |
Controlled RFID Reading AreaThe enclosed reading bin and configured RF field help reduce the possibility of capturing nearby unpaid merchandise outside the intended checkout area. |
Integrated Touch InteractionA 10.1-inch capacitive touchscreen provides a central interface for item confirmation and the retailer's configured self-checkout workflow. |
Flexible Store ConnectivityStandard RJ45 and USB connections support system deployment, while Wi-Fi and 4G are available as optional communication methods. |
Fixed or Mobile InstallationThe carbon-steel cabinet can use bottom foot cups or casters, helping retailers position the terminal around different checkout layouts. |
|
Designed for Fashion Retail
Place the Garments in the Bin and Let RFID Identify the BatchThe RFID Self Checkout Kiosk for Clothing Store environments is designed around a simple physical action: customers place their selected garments inside the reading bin. The system captures the RFID tags together and presents the detected products through the touchscreen interface. The documented reading area is approximately 10 cm around the terminal and up to 50 cm in height. Actual results depend on tag performance, garment material, tag placement, item quantity and the installation environment. |

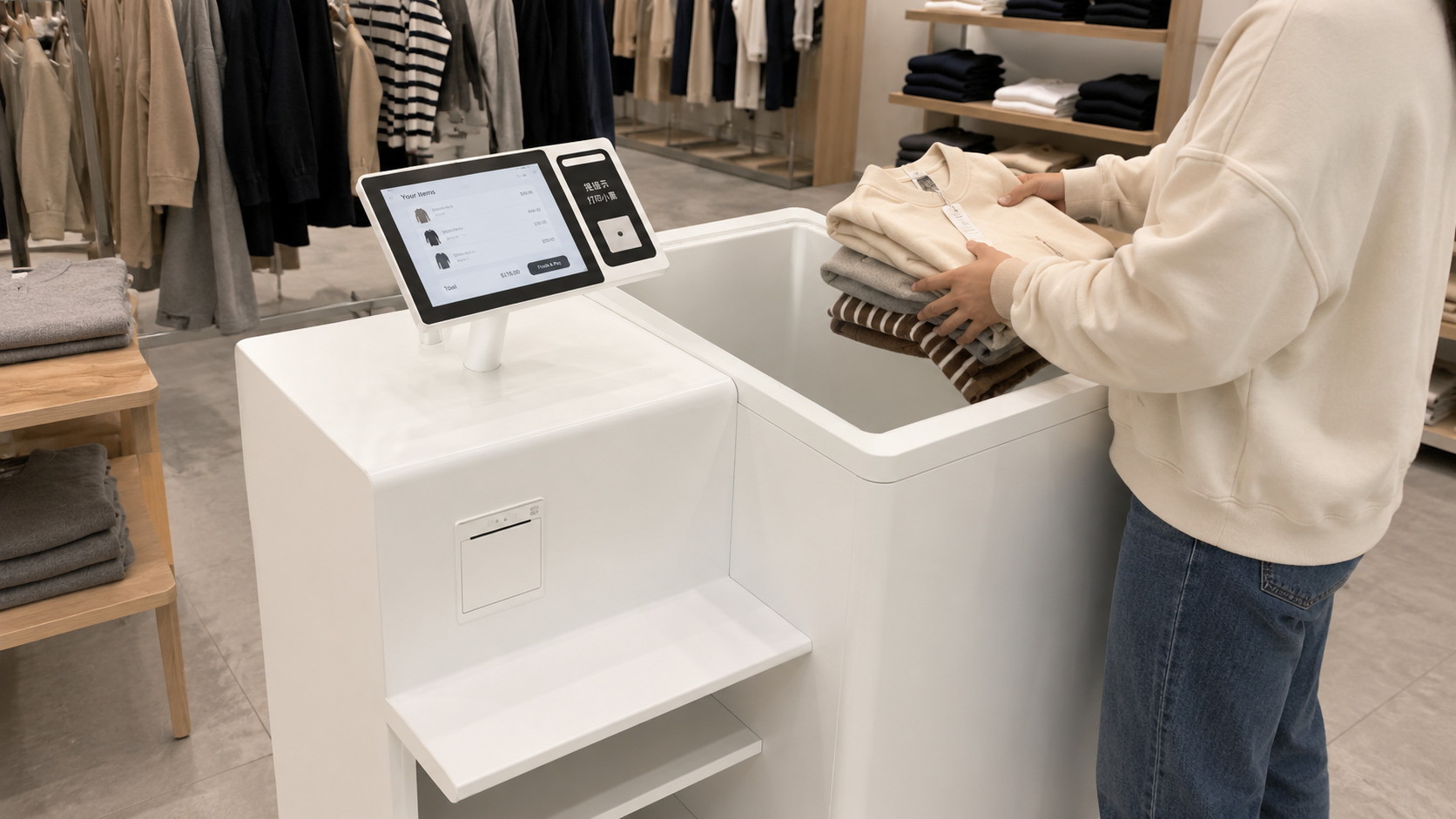

Application image: multiple RFID-tagged garments placed together in the self-checkout reading bin.
|
XTZ3201 acts as the physical RFID and customer-interaction terminal. Product information, prices, order confirmation and payment methods are supplied through the retailer's connected RFID POS System and checkout software.
|
STEP 01
Place ItemsPut the selected RFID-tagged garments together inside the reading bin. |
STEP 02
Identify the BatchThe UHF RFID system captures multiple electronic tags without line-of-sight scanning. |
STEP 03
Review the OrderThe connected checkout application presents the detected products for customer confirmation. |
STEP 04
Complete CheckoutContinue through the configured payment process and print the transaction receipt where required. |
|
System Integration
Connect the Kiosk with the Retailer's Checkout EnvironmentThe final RFID Self Checkout experience depends on more than the cabinet itself. Xiaota can support interface planning, reading tests and integration around the retailer's product database, checkout software, POS environment and selected payment workflow. |
01 RJ45 and USB
Standard physical interfaces for deployment and peripheral connection. 02 Optional Wi-Fi and 4G
Additional connectivity choices for suitable retail environments. 03 SDK and API
Development support for connecting the terminal with compatible business systems. |
Xiaota combines RFID tags, reader hardware, software integration and project implementation. For XTZ3201 deployments, this can include tag and merchandise testing, reading-zone adjustment, interface planning, pilot validation, staff training and rollout support across retail locations.
| Model | XTZ3201 |
| Product Type | RFID Self Checkout Kiosk |
| Operating System | Android |
| Industrial Computer | RK3568, 4GB + 32GB |
| Touchscreen | 10.1-inch capacitive touchscreen, 1920 × 1080 |
| RFID Technology | UHF RFID, 840-960 MHz |
| Checkout Batch Capability | Designed to identify no fewer than 15 items per batch* |
| Electronic Tag Capacity | ≤100 tags* |
| Documented Reading Area | Approximately ≤10 cm around the terminal and ≤50 cm in height* |
| Standard Interfaces | RJ45 network port and USB |
| Optional Communication | Wi-Fi and 4G |
| Development Support | SDK and API development package |
| Power Supply | AC 220V, 50Hz |
| Rated Power | ≤150W |
| Cabinet Material | 1.0 mm carbon-steel plate |
| Installation | Bottom foot cups or casters |
| Reading Bin Size | 350 × 421 × 541 mm (H × W × L) |
| Overall Dimensions | 1159 × 1010 × 650 mm (H × W × D) |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -40°C to +70°C |
| Storage Humidity | 25%-50% |
*RFID reading range, batch performance and supported tag quantity vary with tag performance, tag placement, product material, quantity and the installation environment.
Tell us about your store layout, typical basket size, RFID tags, POS software, payment workflow and rollout plan. Xiaota can help evaluate the reading environment and configure an XTZ3201 RFID Self Checkout solution around your operation.
