XT6R Exp Industrial RFID Single Tag Label Printer

XT6R Exp RFID printer combines 600 dpi label printing, UHF encoding and optional verification for apparel, retail and industrial tagging workflows.

Notice: All products can be configured to comply with the local RFID frequency standards of the destination country or region. Please confirm the required frequency band before placing your quote.

Inquire Now

Product Details

XT6R Exp RFID Printer

Print Every Detail. Encode Every Item.

The XT6R Exp is a 4-inch industrial RFID label printer and encoder built for high-resolution identification workflows. It prints barcodes, graphics and fine text at 600 dpi while encoding UHF RFID labels for apparel, retail, warehousing and source-tagging operations.

Discuss Your RFID Printing Workflow

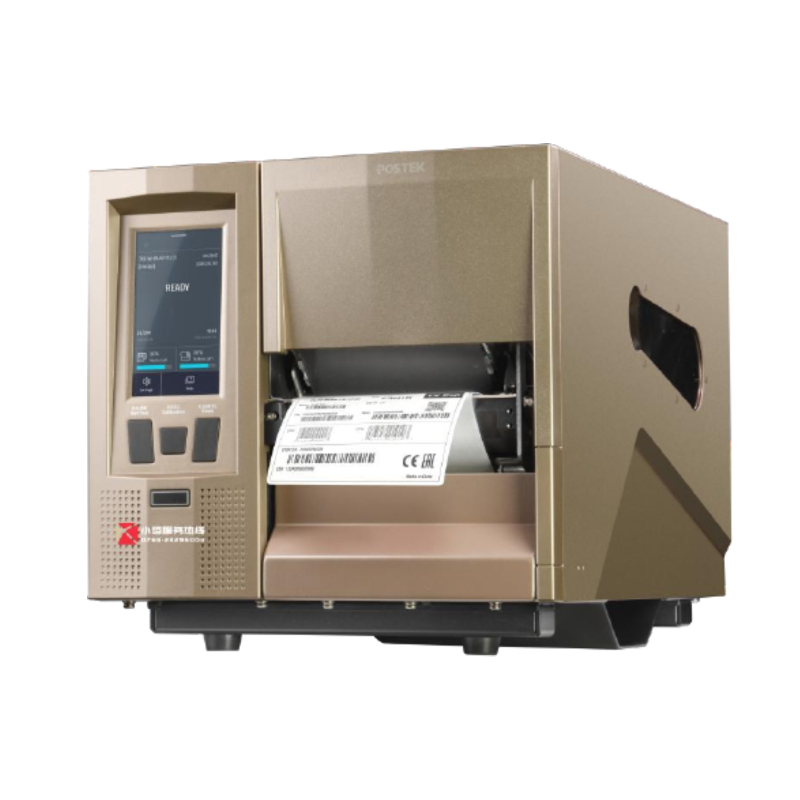

XT6R Exp industrial RFID label printer and encoder

600 dpi

High-resolution printing

6 ips

Maximum print speed

105.6 mm

Maximum print width

4.5 in

Capacitive touchscreen

Print variable product information and encode compatible RFID inlays as roll-fed garment hang tags move through one workflow.

Print and Encode in One Workflow

Turn a Blank RFID Label Into a Connected Item

The XT6R Exp combines thermal label printing with UHF RFID encoding, reducing the need for separate print and write stations. A print-then-read/write antenna structure supports compact RFID labels, while an optional verification module can add another quality-control step before labels enter production or store operations.

Print

Produce barcodes, fine text, logos and variable label data at 600 dpi.

Encode

Write item data to compatible UHF EPC Gen2 / ISO 18000-6C RFID inlays.

Verify

Use the optional encoding-verification module to support additional quality checks.

Apply

Move encoded labels into source tagging, receiving, inventory and fulfilment workflows.

Industrial RFID Printing

Built for Detailed Labels and Connected Operations

600 dpi Print Precision

Render dense barcodes, compact characters and detailed graphics for small-format product and compliance labels.

Integrated UHF Encoder

Print and encode compatible EPC Gen2 / ISO 18000-6C labels through one industrial RFID printer.

Responsive Touch Control

A 4.5-inch capacitive touchscreen supports clear local operation and device configuration.

Smart Standalone Workflows

Run supported printer applications, templates and data-driven tasks without keeping a PC at every printing station.

High-Capacity Media Handling

Accommodate media rolls up to 8 inches in diameter and ribbons up to 600 m to reduce routine replacement.

Flexible RFID Media

Support regular RFID labels and selected flexible on-metal RFID media up to 1.6 mm, subject to configuration and media testing.

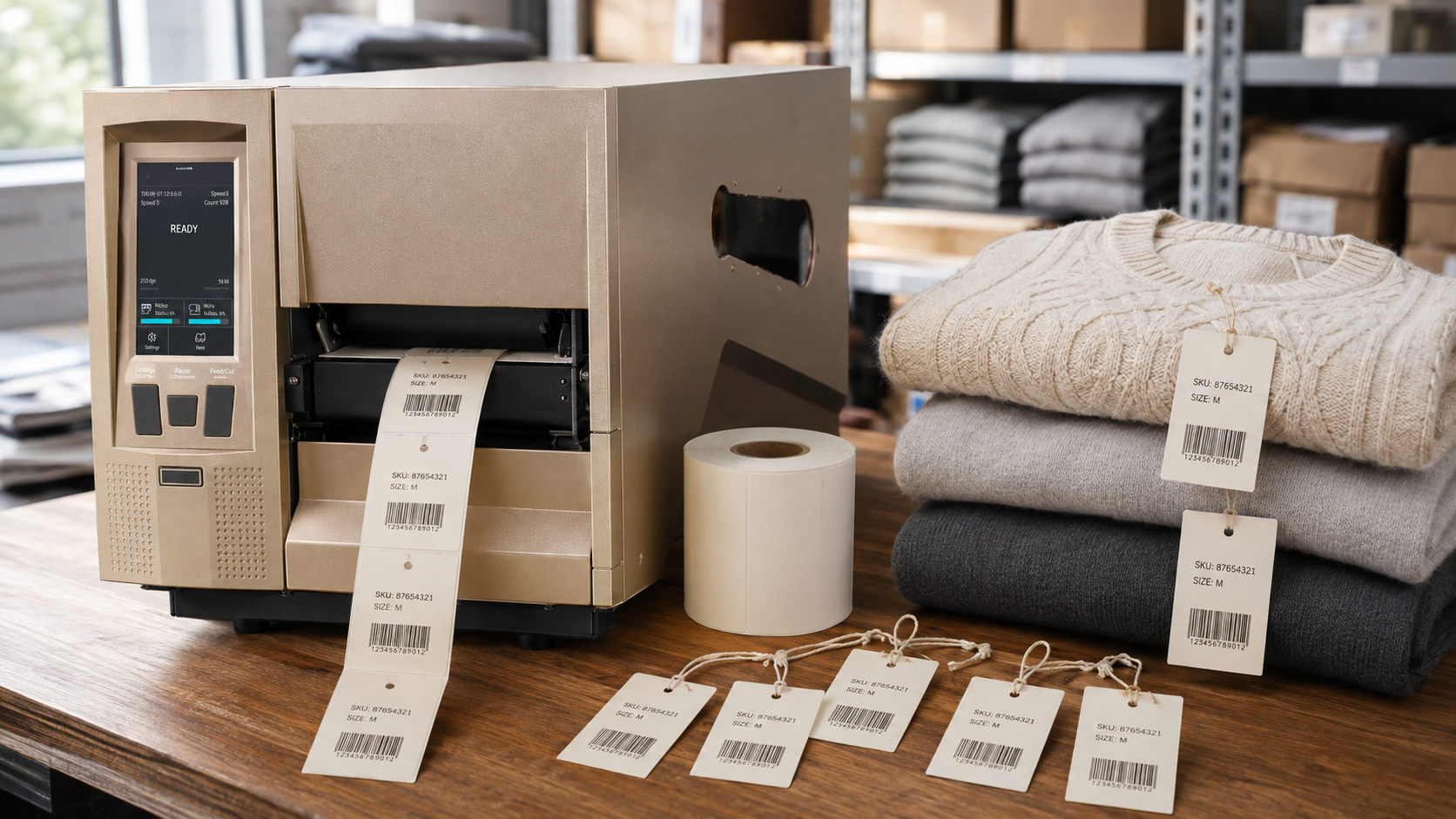

Standalone industrial RFID printer encoding roll-fed apparel hang tags

Supported local applications and templates can help operate roll hang-tag printing stations without a dedicated computer at every device.

Application Scenarios

One RFID Tag Printer, Multiple Item Journeys

Apparel Brands

Source Tagging

Print and encode item-level roll-fed RFID hang tags close to the point of manufacture.

Retail Operations

Relabelling

Prepare replacement or updated RFID labels for store inventory and product handling.

Hypermarkets

Item Identification

Create RFID labels for selected merchandise, inventory visibility and connected checkout workflows.

Warehousing

Inventory Labels

Encode identity data for receiving, stock management, picking and shipment verification.

Integration Ready

Connect Printing With Business Systems

The XT6R Exp RFID printer encoder can connect with workstation, network and supported automated printing workflows. A Python-based printer application platform can support local templates, data processing and integration with business systems.

Application development, system integration and optional interfaces depend on the selected configuration and project requirements.

Standard Interfaces	RS-232, Gigabit Ethernet, USB Device 2.0 and USB Host
Wireless Options	2.4 / 5.8 GHz Wi-Fi and Bluetooth 5.0
System Connection	Local applications, server workflows and supported ERP / MES integration
Optional I/O	External-device connection for supported automated processes

Technical Specifications

XT6R Exp RFID Label Printer Specifications

Model	XT6R Exp
Printing Method	Thermal transfer and direct thermal
Resolution	600 dpi (23.6 dots/mm)
Maximum Print Speed	6 ips (152.4 mm/s)
Maximum Print Width	4.16 in (105.6 mm)
Maximum Print Length	196 in (5000 mm)
RFID	Integrated UHF RFID reader / encoder; EPC Gen2 and ISO 18000-6C
Processor	64-bit quad-core Cortex-A53, up to 1.8 GHz; 2D / 3D graphics acceleration
Memory	2 GB DDR4 RAM; 8 GB managed NAND Flash
Display	4.5-inch capacitive touchscreen
Media Roll	Maximum width 4.56 in (116 mm); maximum outer diameter 8 in (203.2 mm)
Ribbon	Up to 600 m long and 116 mm wide; ink side in or out
RFID Media Thickness	Regular media: 0.06-0.305 mm; supported flexible on-metal media: up to 1.6 mm
Standard Interfaces	RS-232, 10/100/1000 Mbps Ethernet, USB Device 2.0 and USB Host
Optional Connectivity	Wi-Fi 802.11 a/b/g/n/ac/ax and Bluetooth 5.0; I/O interface
Optional Accessories	RFID encoding-verification module; cutter; label peel / rewind functions on applicable Max configuration

Specifications and accessory availability may vary by configuration. RFID performance depends on label design, inlay position, materials, encoding settings and operating environment. Confirm media compatibility through sample testing before deployment.

Frequently Asked Questions

Industrial RFID Printer FAQ

What is an RFID printer encoder?

An RFID printer encoder prints visible information on a label and writes digital identity data to its RFID inlay. The XT6R Exp combines both operations in one industrial device.

Can the XT6R Exp print ordinary barcode labels?

Yes. It supports thermal transfer and direct thermal printing for compatible barcode and RFID label media.

Can it work with on-metal RFID labels?

A supported configuration can handle selected flexible on-metal RFID media up to 1.6 mm thick. Media samples should be tested before final selection.

Is RFID verification standard?

RFID encoding verification is available as an optional module. Confirm the required verification workflow and printer configuration when requesting a quotation.

Build a More Reliable RFID Label Workflow

Tell us about your label dimensions, RFID inlay, materials, daily volume and system environment. XT RFID can help confirm the suitable configuration and media-testing process.

Request a Configuration Review
