Controlled Read Zone
Shielding keeps the signal boundary within approximately 10 cm at corners and edges, helping prevent cross-reads from surrounding tagged goods.
XTC6201 RFID reader delivers fast, shielded batch identification for apparel receiving, shipping and warehouse inventory using full-size carts.
Notice: All products can be configured to comply with the local RFID frequency standards of the destination country or region. Please confirm the required frequency band before placing your quote.

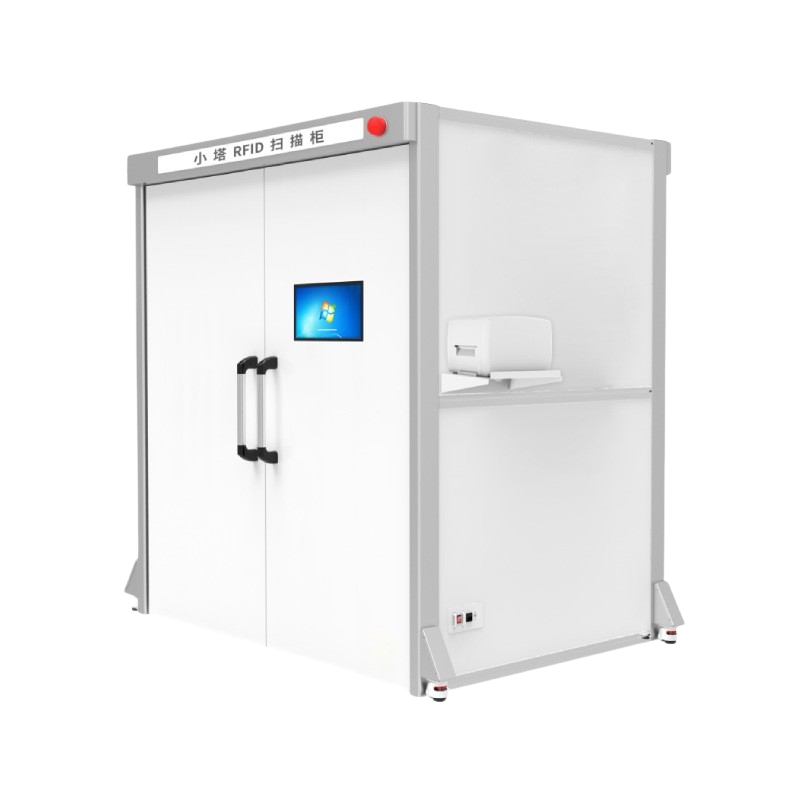

XTC6201 · RFID Cabinet Reader
The XTC6201 is an industrial RFID reader designed for high-volume receiving, shipping and inventory verification. Its enclosed dual-door structure creates a controlled read zone for apparel, bags and other EPC-tagged goods, helping warehouse teams count an entire cart in one cycle while reducing unwanted reads from nearby stock.
One controlled batch-reading workflow
This UHF RFID reader replaces repeated item-by-item barcode handling with a simple cart-level workflow for tagged inventory.

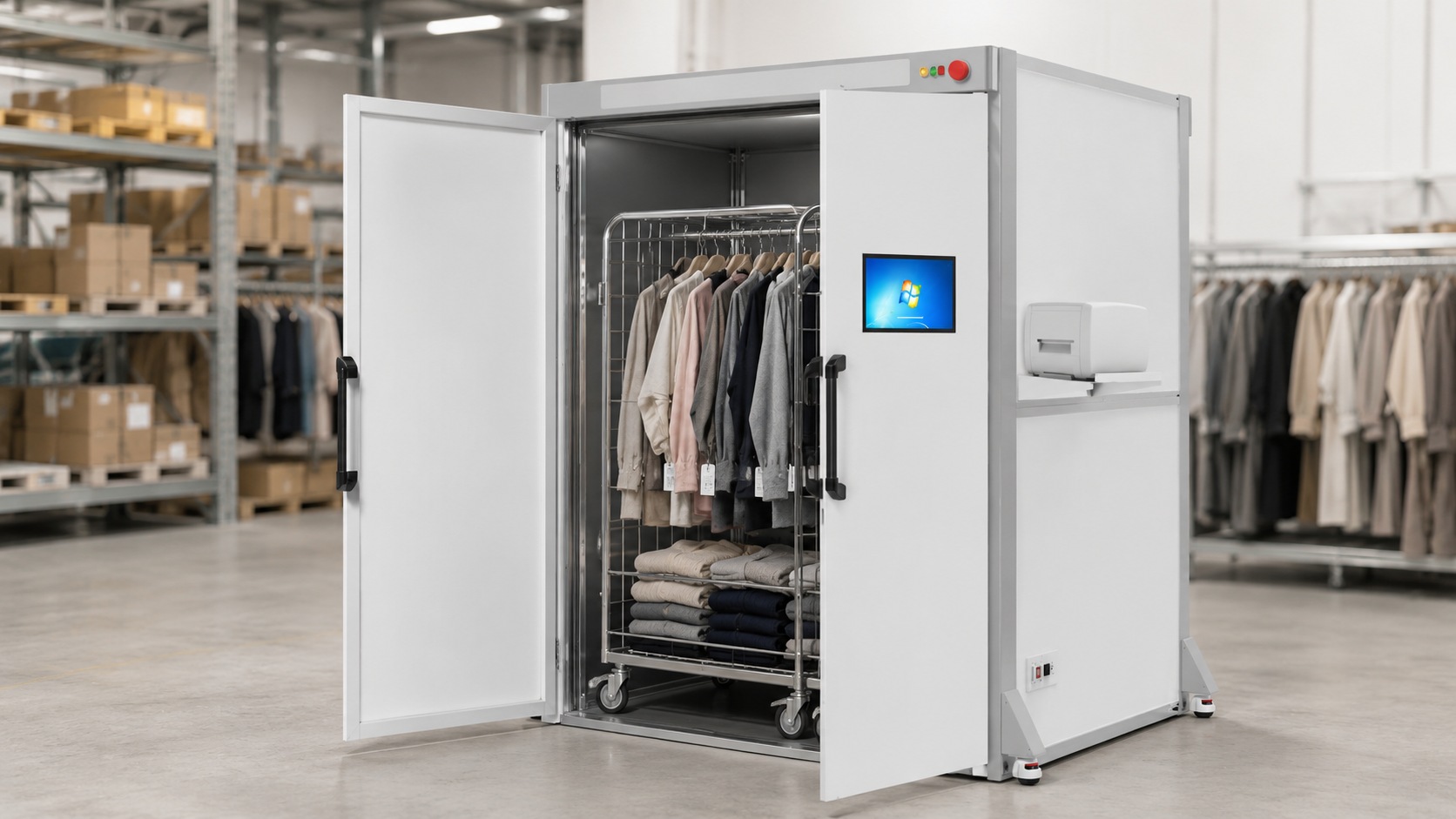

Move the garment rack, cage cart or shelf trolley into the cabinet.
Close the doors and trigger a stationary bulk-reading cycle.
Review quantities and tag data on the screen, then export or send the result to the connected system.
Designed around warehouse realities
The cabinet combines UHF reading, shielding, operator guidance and system connectivity in one integrated station.
Shielding keeps the signal boundary within approximately 10 cm at corners and edges, helping prevent cross-reads from surrounding tagged goods.
Supports at least 500 tagged items per batch, depending on item size, tag placement, materials and packing density.
A full-HD industrial capacitive screen gives operators a clear view of reading status, item count and result data.
Front and rear access supports practical receiving and dispatch layouts while maintaining an enclosed reading cycle.
Door indicator lights and a buzzer help operators follow each reading cycle in busy warehouse environments.
Ethernet supports data exchange with warehouse and inventory platforms; Wi-Fi and 4G expansion are available for suitable deployments.
Inventory confidence at the handoff

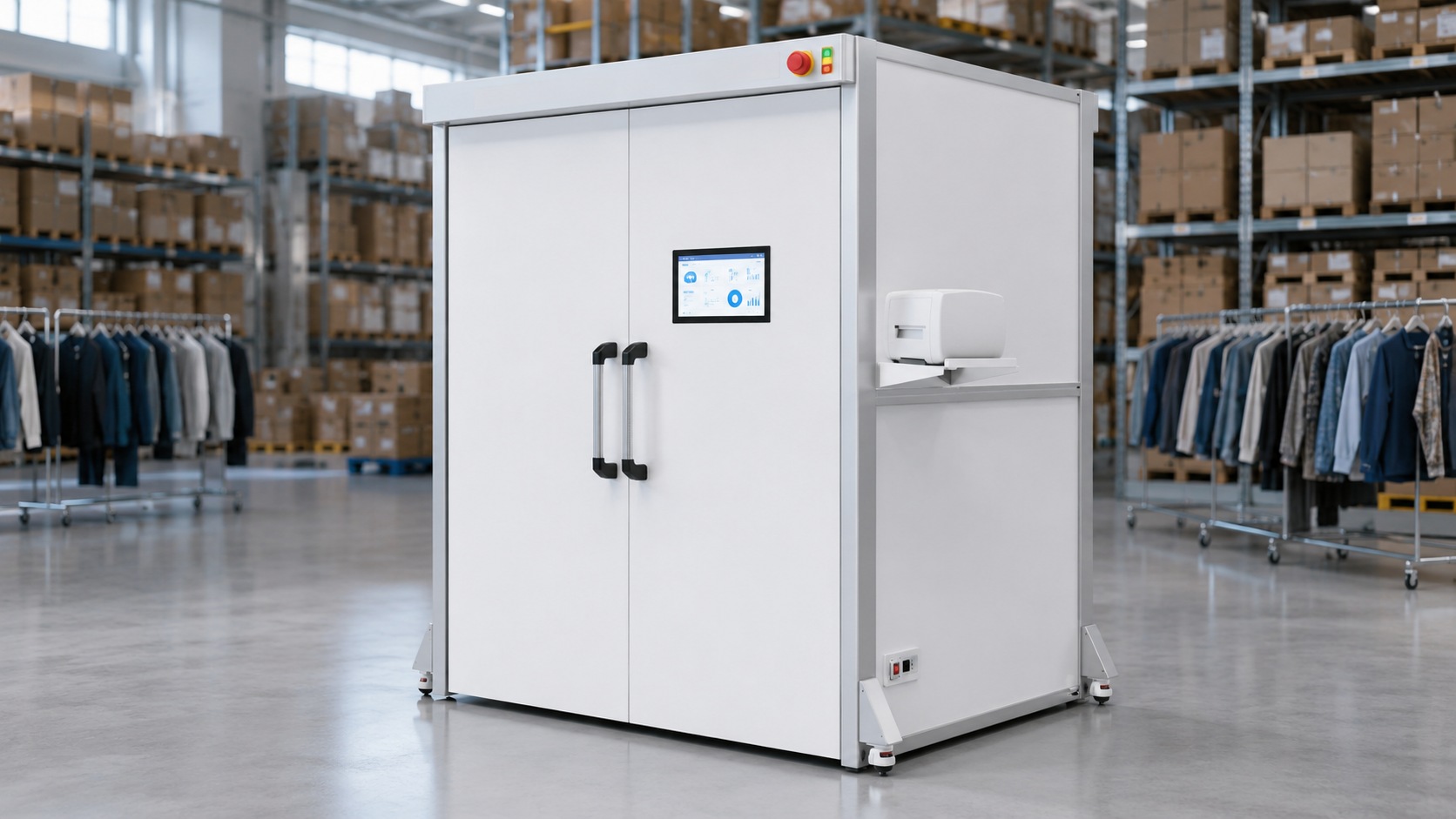

Unlike an open reading zone, the XTC6201 encloses the load while the RFID reader performs a stationary cycle. This makes it well suited to high-density apparel and warehouse processes where nearby tags must remain outside the result.
Technical specifications
| System and RFID Performance | |
|---|---|
| Product Model | XTC6201 |
| Product Type | Industrial UHF RFID reader for enclosed batch inventory |
| Operating System | Windows; Android optional |
| Industrial Computer | Intel Core i5, 4 GB RAM, 128 GB SSD |
| Identification | UHF RFID |
| Frequency Range | 840–960 MHz; regional configuration required |
| Protocols | ISO 18000-6C / EPC Class 1 Gen 2, ISO 18000-6B; GB/T 29768-2013 expandable |
| RFID Frequency Mode | Fixed frequency / frequency hopping |
| Output Power | 33 dBm ±1 dBm |
| Batch Capacity | ≥500 items, depending on item volume and deployment conditions |
| Identification Speed | Up to 100 items per second |
| Typical Cycle Time | 3–5 seconds |
| Reading Mode | Stationary |
| Work Mode | Loop / trigger |
| Shielding Boundary | Less than 10 cm at right-angle and corner areas |
| Structure, Display and Power | |
| Housing | 1.2 mm carbon steel plate |
| Display | 21.5-inch industrial capacitive touch display, 1920 × 1080 |
| Internal Space | 1885 × 1599 × 1844 mm; customizable |
| External Dimensions | 2089 × 2094 × 1991 mm; customizable |
| Maximum Power | 200 W |
| Input | AC 220 V, 50 Hz |
| Operating / Storage Temperature | -20 °C to 60 °C |
| Communication | Ethernet; Wi-Fi or 4G expandable |
*Performance depends on tag type, tag placement, product material, loading density, RF settings and the operating environment. Final configuration and regional frequency settings should be confirmed during project evaluation.
RFID solutions by industry
The product remains one RFID reader, while its role changes according to the receiving, stock control and order-verification workflow.
Frequently asked questions
It is used to identify and count large batches of UHF RFID-tagged goods during receiving, shipping, stock transfer and inventory verification. It is especially suited to carts, racks and cage trolleys containing apparel, bags or other item-level tagged products.
The load is enclosed during the reading cycle, and the cabinet structure controls RF leakage around edges and corners. This helps keep nearby tagged inventory outside the scan result when the installation is correctly configured.
The standard specification supports at least 500 items per batch. Actual capacity depends on item size, packing density, tag sensitivity, tag placement and product materials, so application testing is recommended.
Yes. Ethernet communication is supported, with Wi-Fi and 4G expansion available. Data fields, interfaces and integration scope should be confirmed against the customer’s WMS, ERP or RFID inventory management platform.
The internal and external dimensions can be adjusted for suitable projects. Windows is the standard operating system, while Android and selected communication options are available according to deployment requirements.
Share your cart size, tagged item type, batch quantity and system integration requirements.
