XTC6301 RFID verification station combines UHF batch reading and barcode capture to bind shipment data and verify apparel orders before dispatch.

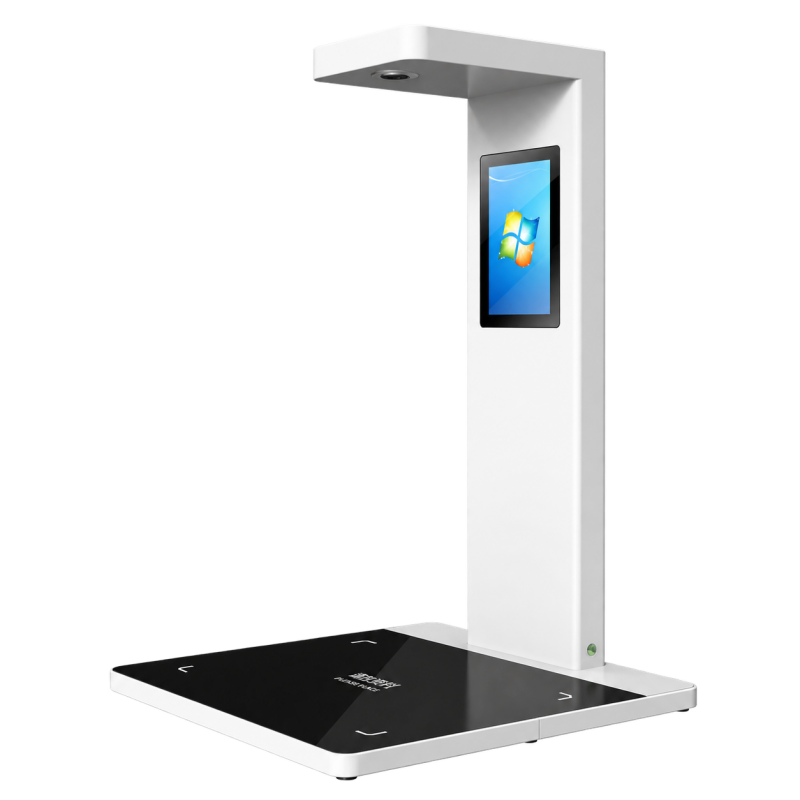

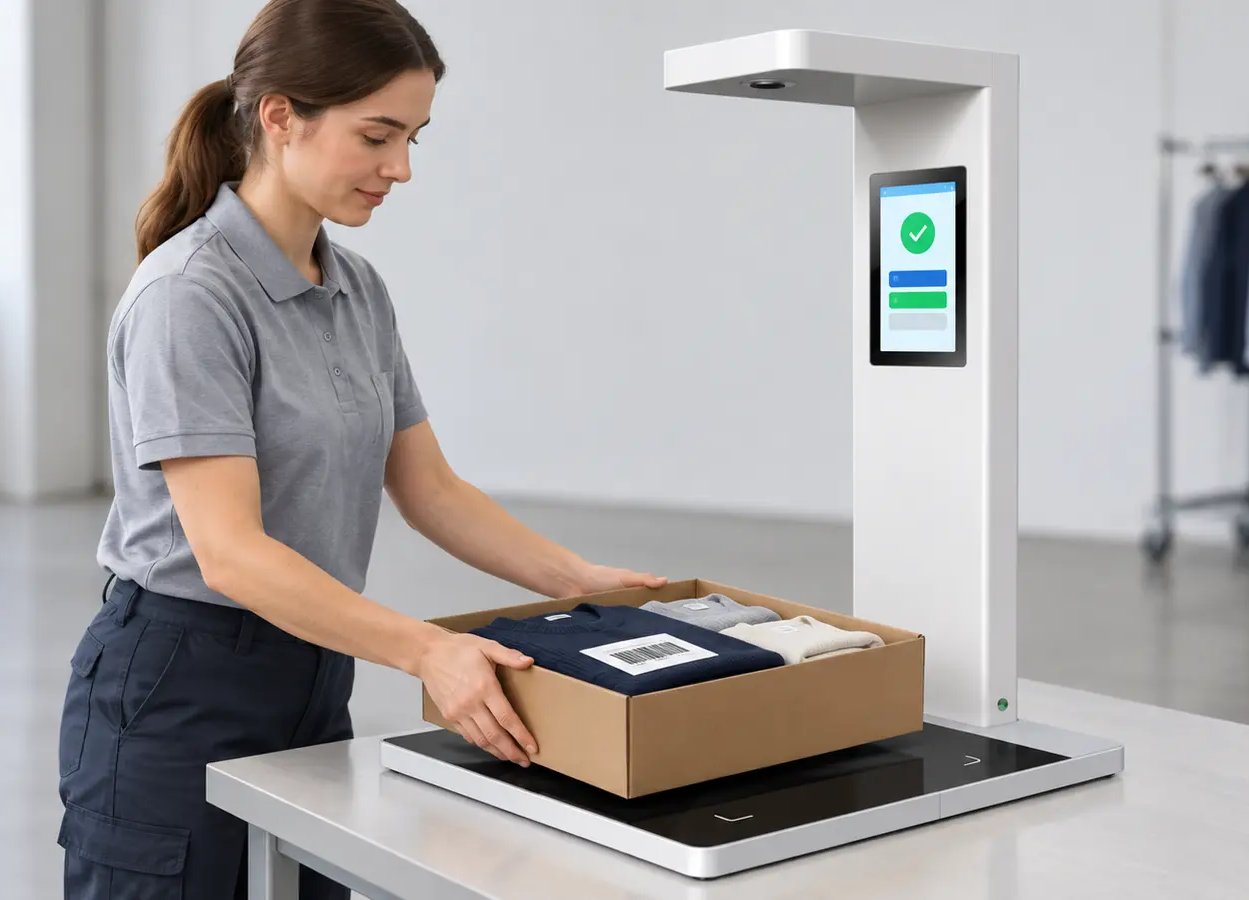

The XTC6301 RFID verification station combines UHF batch reading with overhead barcode capture to associate tagged apparel with carton or shipping-label data. It helps warehouse teams verify outbound orders before dispatch while keeping the packing workflow fast and easy to follow.
The overhead vision unit captures the carton or shipping-label barcode while the UHF reader identifies multiple RFID-tagged garments on the platform. The station records the relationship between both data sets and checks the result against the shipping plan.
One guided station replaces separate manual capture and association steps.
Position the packed apparel or grouped items on the controlled read platform.
The 16 MP overhead camera reads the shipping label or package barcode.
UHF RFID identifies tagged garments at a speed of at least 30 items per second.
The software associates both records and flags differences before dispatch.
Collect item-level UHF RFID data and package-level barcode data at one workstation.
Create a traceable relationship between the RFID item list and its carton or shipment record.
Read multiple tagged garments together instead of scanning every product one by one.
A 16 MP camera captures barcodes from above while leaving the work surface accessible.
The 10.1-inch capacitive touchscreen gives operators clear access to capture and verification steps.
Connect verification records with the customer's WMS, ERP, order, or shipping workflow.
| Model | XTC6301 |
|---|---|
| UHF Air Interface | ISO 18000-6C |
| Frequency | 840–960 MHz; fixed frequency or frequency hopping |
| RF Output Power | 33 dBm ±1 dBm |
| RFID Identification Speed | ≥30 items/second |
| Barcode Scanning Speed | ≤3 seconds/PCS |
| Display | 10.1-inch capacitive touchscreen |
| Operating System | Windows |
| Camera | 16 MP |
| Dimensions | 600 × 600 × 918 mm |
| Housing | Powder-coated sheet metal |
| Operating / Storage Temperature | −20°C to 60°C |
| Power Supply | AC 220 V; maximum power 120 W |
Built for outbound processes where item identity must be associated with a carton, order, or shipping label.
Verify tagged garments and carton identity before warehouse dispatch.
Associate multi-item fashion orders with the correct parcel and shipping label.
Check bulk outbound contents against shipment plans for retail partners.
Build traceable RFID and barcode associations at the final packing stage.
It captures the package or shipping-label barcode, reads the UHF RFID tags in the shipment, associates both data sets, and checks the captured result against the shipping plan.
Yes. Its UHF RFID module identifies tagged items in batches at a specified speed of at least 30 items per second.
The Windows-based station can be integrated with WMS, ERP, order-management, or shipping workflows. Interface and software requirements should be confirmed for each project.
Yes. Frequency configuration is available according to the applicable local regulatory standard within the supported 840–960 MHz range.
Tell us about your RFID tags, barcode format, order volume, local frequency requirement, and WMS or ERP environment. Our team can help define the right configuration and integration scope.
